Introduction

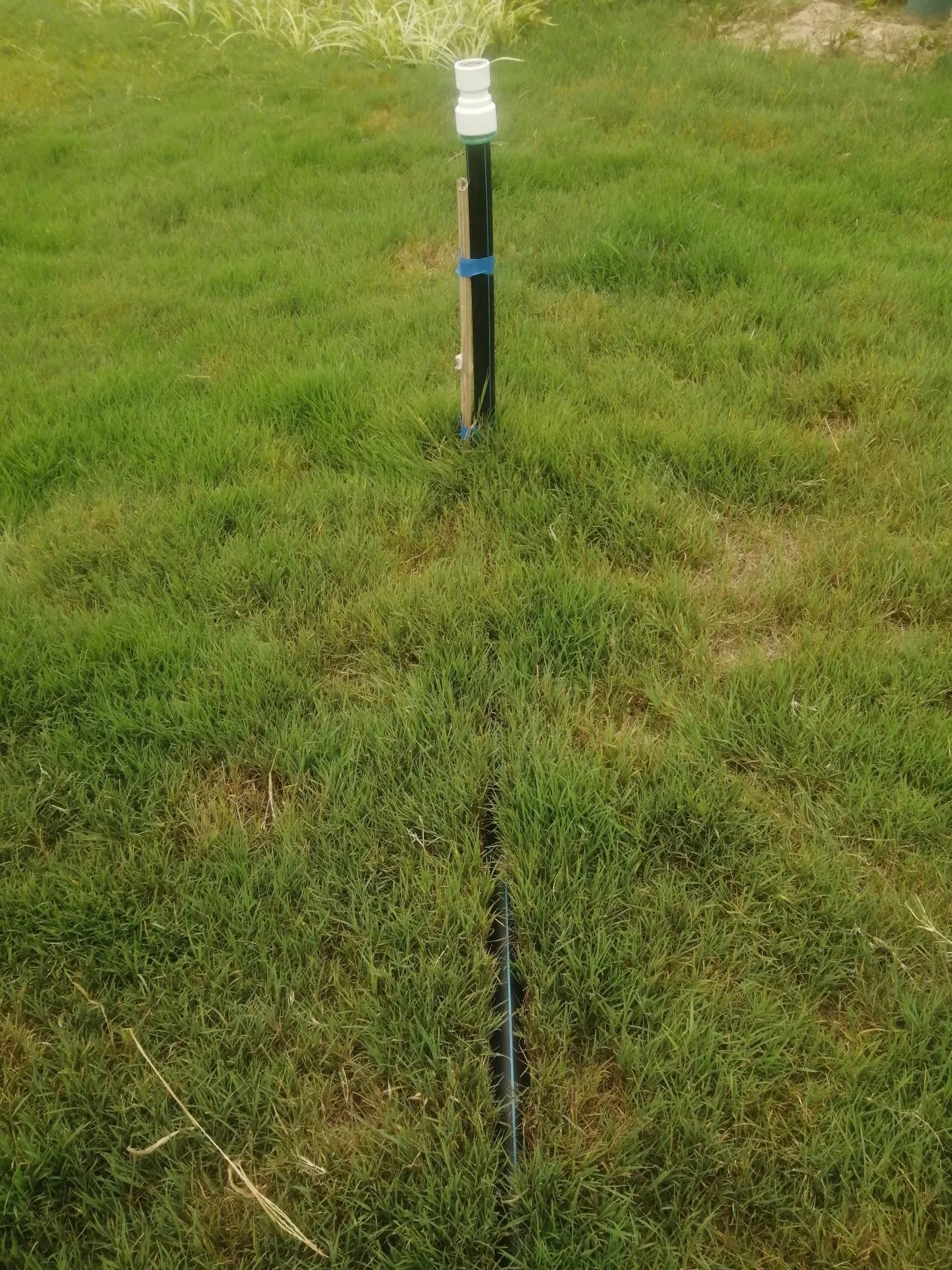

China Black High-Density Polyethylene (HDPE) pipe represents a significant segment within the broader polyethylene piping industry. It's a thermoplastic pipe system utilized primarily for fluid and gas transfer applications, notably in municipal water mains, industrial process piping, mining operations, and agricultural irrigation. The “China Black” designation refers to the predominant coloration achieved through carbon black additives, imparting UV resistance and opacity. Technically, HDPE pipe is categorized by its Pressure Rating (PR), determined by the pipe’s dimensions and material characteristics, dictating its suitability for specific operating pressures and temperatures. Its position in the value chain originates with the polymerization of ethylene into HDPE resin, followed by extrusion into pipe form. Core performance characteristics include its excellent chemical resistance, lightweight nature, flexibility, and long service life with minimal maintenance, making it a cost-effective alternative to traditional metallic piping systems. A major industry pain point revolves around consistent quality control, particularly regarding resin sourcing and extrusion process monitoring, to ensure adherence to international standards and avoid premature failure.

Material Science & Manufacturing

The fundamental material of China Black HDPE pipe is high-density polyethylene (HDPE) resin, typically produced through the Ziegler-Natta or metallocene catalytic polymerization of ethylene. The density of the HDPE used typically ranges from 0.93 to 0.97 g/cm³. Carbon black is added during the compounding stage, comprising 2-5% by weight. The carbon black imparts UV stabilization, preventing polymer degradation from sunlight exposure, and provides opacity, preventing algal growth in water applications. Other additives may include antioxidants and stabilizers to further enhance long-term performance.

Manufacturing predominantly involves extrusion. HDPE resin, carbon black, and additives are fed into an extruder, where they are heated and melted. This molten material is then forced through a die, shaping it into a seamless pipe. Key parameters in the extrusion process include die temperature (typically 180-220°C), screw speed, and haul-off speed. Precise control of these parameters is critical to maintain consistent wall thickness, diameter, and surface finish. Further processing includes cooling (usually water-based), sizing, and cutting to specified lengths. Fusion joining methods, such as butt fusion, socket fusion, and electrofusion, are typically used to connect pipe sections, ensuring a leak-proof and structurally sound joint. Maintaining consistent melt flow index (MFI) of the resin is paramount, as deviations impact weldability and overall pipe integrity. Quality control checks include hydrostatic pressure testing to verify the pipe's ability to withstand internal pressure and dimensional inspections to confirm adherence to specified tolerances.

Performance & Engineering

The performance of China Black HDPE pipe is heavily reliant on its structural integrity under internal and external loads. Force analysis considers hoop stress (generated by internal pressure), longitudinal stress (from pressure and thermal expansion/contraction), and external loads (soil loads, traffic loads). The pipe’s ability to withstand these stresses is determined by its PE100 or PE80 classification, representing the minimum required strength (MRS) in MPa. The pipe's flexibility allows for some ground movement without causing stress fractures, a significant advantage over rigid materials like concrete or steel.

Environmental resistance is a critical performance factor. HDPE exhibits excellent resistance to most chemicals, making it suitable for transporting a wide range of fluids. However, prolonged exposure to strong oxidizing agents can lead to degradation. Temperature plays a significant role, with performance decreasing at elevated temperatures. Operating temperatures are typically limited to 40-60°C depending on the specific application and pressure rating. Compliance with relevant standards, such as ISO 4427 and EN 12201, is essential to ensure structural integrity and long-term performance. Burial depth calculations must account for soil properties, anticipated traffic loads, and frost heave to prevent pipe damage. Proper bedding and backfilling are also crucial for providing adequate support and minimizing stress concentration.

Technical Specifications

Parameter	Unit	PE80	PE100
Minimum Required Strength (MRS)	MPa	8.0	10.0
Density	g/cm³	0.93 – 0.95	0.95 – 0.97
Hydrostatic Design Pressure (HDP) - PN10	bar	1.0	1.25
Operating Temperature	°C	-20 to +40	-20 to +60
Carbon Black Content	% by weight	2-3	2-5
Wall Thickness Tolerance	mm	±0.63	±0.63

Failure Mode & Maintenance

Common failure modes in China Black HDPE pipe include slow crack growth (SCG), particularly in areas of stress concentration (e.g., around fittings, welds). SCG is often initiated by minor scratches or imperfections and exacerbated by sustained stress and exposure to certain chemicals. Another failure mode is brittle fracture, which can occur at low temperatures or due to impact loading. Oxidation, though mitigated by the carbon black additive, can still occur over extended periods, leading to material degradation. UV degradation, if the carbon black content is insufficient or the pipe is exposed for prolonged periods without adequate protection, can also cause embrittlement. Fatigue cracking can occur in applications with cyclic pressure or vibration. Delamination can occur at improperly executed fusion welds.

Preventative maintenance primarily involves visual inspections for cracks, deformation, or leaks. Regular pressure testing can identify potential weaknesses. Proper installation techniques, including adequate bedding and backfilling, are crucial to minimize stress. Careful handling and storage are essential to prevent damage to the pipe surface. If SCG is detected, the affected section should be replaced. For minor leaks at joints, re-fusion may be possible, but a complete replacement is often recommended. Routine checks of cathodic protection systems (if installed) are vital to prevent corrosion of metallic components in the piping system. Maintaining accurate records of installation, repairs, and inspections is essential for long-term asset management.

Industry FAQ

Q: What is the impact of varying resin densities on the long-term performance of HDPE pipe?

A: Higher density HDPE (e.g., PE100) generally exhibits superior mechanical properties, including increased tensile strength, burst pressure, and resistance to slow crack growth compared to lower density HDPE (e.g., PE80). This translates to a longer service life and improved reliability, especially in demanding applications with high pressures or aggressive environments. However, higher density resins can be more brittle and require more careful handling during installation.

Q: How does the carbon black content influence the UV resistance and long-term durability of the pipe?

A: Carbon black acts as a UV stabilizer by absorbing harmful ultraviolet radiation, preventing polymer chain scission and degradation. A higher carbon black content provides greater UV protection, extending the pipe's service life in outdoor applications. However, excessively high carbon black levels can negatively impact weldability and may alter the mechanical properties of the HDPE. The optimal concentration is typically between 2-5% by weight.

Q: What are the critical parameters to control during butt fusion welding to ensure a reliable joint?

A: Critical parameters include the welding temperature, welding pressure, heating time, and cooling time. Accurate temperature control is paramount to ensure proper fusion without overheating or underheating. Sufficient pressure is needed to create a strong bond between the pipe sections. Proper cooling is essential to prevent distortion and maintain joint integrity. Following established welding procedures and utilizing calibrated welding equipment are vital.

Q: What is the significance of the PE rating (PE80, PE100) and how does it relate to the pressure rating of the pipe?

A: The PE rating refers to the Minimum Required Strength (MRS) of the HDPE material, measured in MPa. It represents the minimum long-term hydrostatic strength the material must possess. The pressure rating (PN) of the pipe is derived from the MRS, taking into account factors such as pipe dimensions and safety factors. Higher PE ratings (e.g., PE100) allow for higher pressure ratings.

Q: How does soil corrosivity impact the lifespan of buried HDPE pipe, and what mitigation strategies are available?

A: While HDPE itself is highly corrosion resistant, the surrounding soil can influence its longevity. Highly corrosive soils can cause external stress and potential damage. Mitigation strategies include using protective coatings (though rarely necessary for HDPE itself), employing cathodic protection systems (especially in proximity to metallic components), ensuring proper bedding and backfilling with non-corrosive materials, and conducting regular soil analysis to assess corrosivity levels.

Conclusion

China Black HDPE pipe represents a durable, cost-effective, and versatile solution for fluid and gas transmission. Its inherent chemical resistance, flexibility, and long service life make it a favored choice across diverse industries. However, achieving optimal performance requires a thorough understanding of the material science, manufacturing processes, and potential failure modes. Maintaining stringent quality control throughout the production process, ensuring proper installation techniques, and implementing preventative maintenance programs are crucial to maximizing the lifespan and reliability of these systems.

Future advancements in HDPE pipe technology will likely focus on developing enhanced resin formulations with improved resistance to SCG and oxidation, incorporating smart sensors for real-time monitoring of pipe integrity, and refining fusion welding techniques to create even stronger and more reliable joints. Continued adherence to international standards and a commitment to ongoing research and development will be essential for sustaining the growth and innovation within the China Black HDPE pipe industry.
