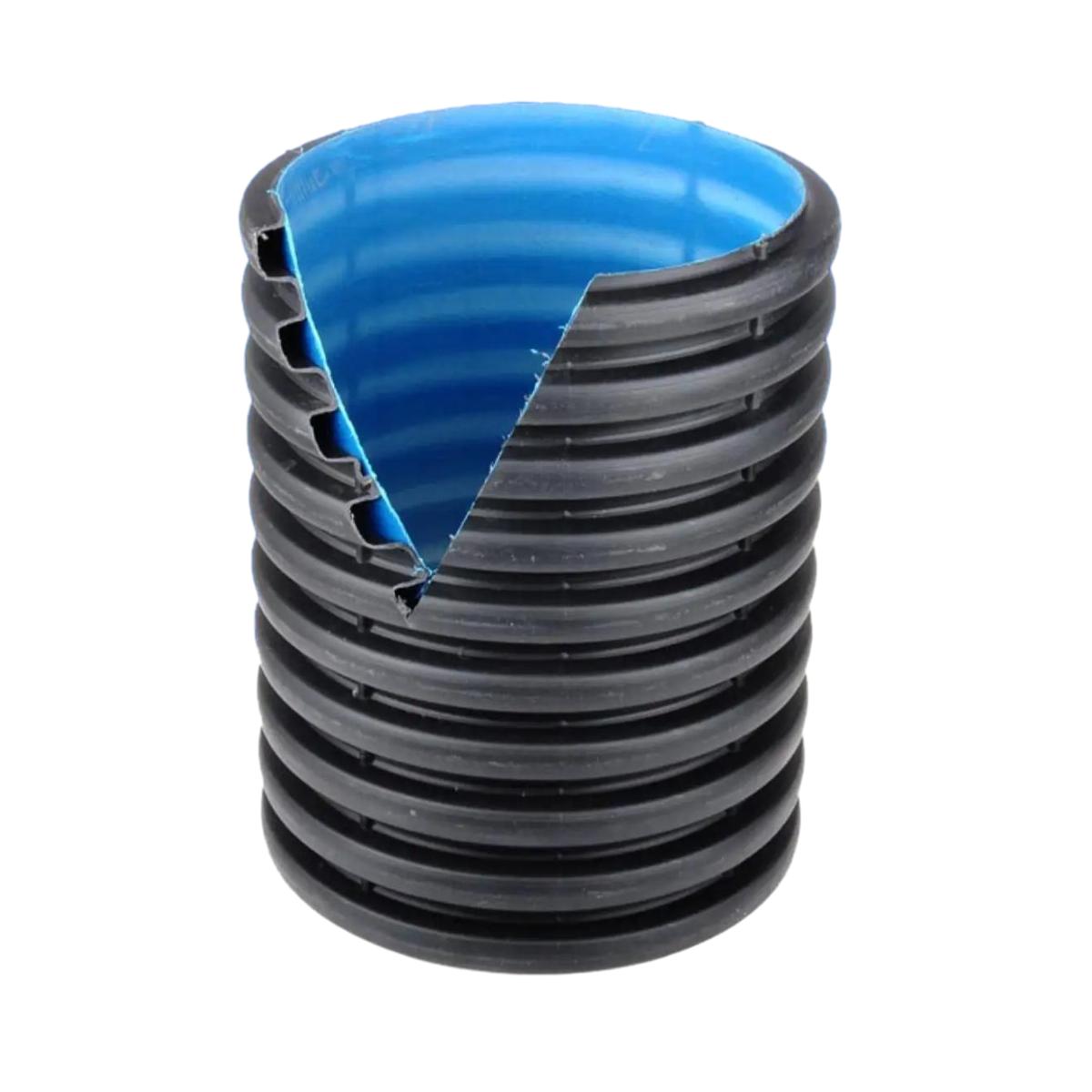

Introduction

The connection of Polyvinyl Chloride (PVC) to High-Density Polyethylene (HDPE) piping systems is a common requirement in a variety of infrastructure applications, particularly in water distribution, irrigation, and drainage. This technical guide addresses the challenges and best practices for achieving durable, leak-proof connections between these dissimilar materials. PVC and HDPE possess significantly different physical and chemical properties, including coefficients of thermal expansion, flexibility, and chemical resistance, necessitating specialized connection techniques. Improperly executed connections can lead to failures, including joint separation, cracking, and contamination. This document outlines the material science, manufacturing considerations, performance criteria, and potential failure modes associated with PVC-to-HDPE transitions, offering insights crucial for engineers, procurement managers, and maintenance personnel. The growing demand for robust and reliable infrastructure in both municipal and industrial settings necessitates a comprehensive understanding of these connection methodologies.

Material Science & Manufacturing

PVC is a thermoplastic polymer composed of vinyl chloride monomers, exhibiting rigidity and resistance to a broad range of chemicals. Its manufacturing typically involves suspension polymerization followed by compounding with stabilizers, plasticizers, and lubricants. The resulting material has a glass transition temperature (Tg) around 80°C, leading to dimensional changes with temperature fluctuations. HDPE, conversely, is a flexible thermoplastic polyethylene with a high strength-to-density ratio. Produced through the catalytic polymerization of ethylene, HDPE features a semi-crystalline structure with varying degrees of branching influencing its density and mechanical properties. HDPE’s Tg is considerably lower, around -120°C, contributing to its greater flexibility. The differing coefficients of linear thermal expansion (PVC: 8 x 10^-5 /°C, HDPE: 1.2 x 10^-4 /°C) represent a key challenge in joining these materials. Manufacturing of connection components, such as transition couplings and electrofusion fittings, involves precision molding of both PVC and HDPE. Quality control focuses on dimensional accuracy, material purity, and weldability for HDPE components. The PVC components require inspection for proper formulation and consistent wall thickness. The adhesives used in solvent cement connections are crucial and must be compatible with both PVC and the primer used to prepare the PVC surface for bonding.

Performance & Engineering

Engineering PVC-to-HDPE connections requires careful consideration of stress distribution, temperature effects, and pressure ratings. The primary failure mechanisms stem from differential thermal expansion and contraction, leading to shear stresses at the interface. Transition couplings incorporating rubber gaskets or flexible sleeves mitigate these stresses by accommodating movement. Electrofusion welding, commonly used for HDPE, is not directly applicable to PVC due to the material incompatibility. Therefore, mechanical connections utilizing specialized fittings are the preferred method. Force analysis must account for internal pressure, external loads (soil load, traffic load), and dynamic forces from water hammer or flow turbulence. Environmental resistance is paramount, especially in corrosive environments. PVC's resistance to acids and bases is generally good, but it can be susceptible to degradation from prolonged UV exposure. HDPE exhibits excellent chemical resistance to most acids, bases, and solvents. Compliance with industry standards (discussed in Section 7) dictates allowable stresses, safety factors, and testing protocols to ensure long-term reliability. Finite Element Analysis (FEA) is frequently employed to optimize fitting designs and validate connection integrity under various loading conditions. Proper anchoring and support of the pipeline are essential to prevent excessive strain on the connections.

Technical Specifications

Parameter	PVC (Typical)	HDPE (Typical)	Transition Fitting Material
Tensile Strength (MPa)	55-75	30-40	Polypropylene (PP) or Rubber (EPDM)
Flexural Modulus (GPa)	3-4	1.0-1.5	Varies based on material
Density (kg/m³)	1400-1450	950-970	Varies based on material
Coefficient of Linear Thermal Expansion (°C^-1)	8 x 10^-5	1.2 x 10^-4	Varies based on material
Operating Temperature Range (°C)	0-60	-40 to +60	-20 to +80
Pressure Rating (Bar)	PN10, PN16	PN10, PN16, PN20	Matches Lowest Rated Pipe

Failure Mode & Maintenance

Common failure modes in PVC-to-HDPE connections include joint separation due to differential thermal expansion, cracking of the PVC pipe near the fitting, gasket failure in mechanical couplings, and corrosion-induced degradation of the fitting material. Fatigue cracking can occur under cyclic loading conditions, particularly in systems subjected to water hammer. Delamination can occur if the adhesive used in solvent cement connections is not properly applied or is incompatible with the PVC formulation. Oxidation of the HDPE component can occur with prolonged UV exposure, leading to embrittlement. Maintenance protocols should include regular visual inspections for leaks, cracks, and gasket deterioration. Periodic pressure testing can verify the integrity of the connection. For mechanical couplings, ensure the bolts are tightened to the specified torque. If gasket replacement is necessary, use only manufacturer-approved gaskets. For solvent cement connections, re-cementing may be possible if the damage is localized, but complete replacement is often the preferred option. Implementing a corrosion protection system (e.g., protective coatings) for metallic components in the fitting can extend the service life. Regular cleaning of the pipeline can prevent buildup of debris that could contribute to stress concentrations.

Industry FAQ

Q: What is the primary challenge when connecting PVC and HDPE?

A: The primary challenge is the significant difference in their coefficients of linear thermal expansion. HDPE expands and contracts considerably more than PVC with temperature changes, which can induce stress at the connection point, leading to failure. Specialized fittings designed to accommodate this differential movement are essential.

Q: Can electrofusion welding be used to connect PVC and HDPE directly?

A: No, electrofusion welding is specifically designed for joining HDPE and other polyolefin-based materials. The heat generated during electrofusion would damage and degrade the PVC, resulting in a weak and unreliable connection.

Q: What type of fitting is generally recommended for PVC-to-HDPE transitions?

A: Mechanical transition couplings incorporating rubber gaskets (typically EPDM) or flexible sleeves are generally recommended. These fittings allow for differential movement between the pipes while maintaining a watertight seal. Flanged connections with appropriate gaskets are also viable options.

Q: What factors should be considered when selecting a transition fitting?

A: Pressure rating, pipe diameter, operating temperature, chemical compatibility, and the expected level of ground movement or thermal cycling are crucial factors. The fitting material should also be compatible with both PVC and HDPE and resistant to corrosion.

Q: How important is proper solvent cementing technique when using PVC fittings as part of the connection?

A: Proper solvent cementing technique is absolutely critical. This includes surface preparation (priming), applying the correct amount of cement, ensuring proper dwell time, and avoiding excessive or insufficient cement. Improperly cemented joints are a common point of failure.

Conclusion

Successfully connecting PVC and HDPE piping systems demands a thorough understanding of the distinct material properties and the engineering principles governing thermal expansion, stress distribution, and long-term durability. While challenges exist due to the inherent differences between these polymers, employing appropriately designed transition fittings – primarily mechanical couplings with flexible elements – and adhering to rigorous installation procedures can yield reliable and long-lasting connections. The selection of fitting materials compatible with the operating environment and the adherence to relevant industry standards are paramount for ensuring system integrity.

Future developments in connection technologies may focus on innovative sealing materials and more sophisticated fitting designs that further mitigate the effects of differential thermal expansion. Continuous monitoring of connection performance and the implementation of preventative maintenance programs will further enhance the longevity and reliability of PVC-to-HDPE pipeline systems. A proactive approach to addressing potential failure modes, coupled with a commitment to quality control throughout the design, manufacturing, and installation processes, is essential for ensuring the safe and efficient operation of these critical infrastructure components.
