Introduction

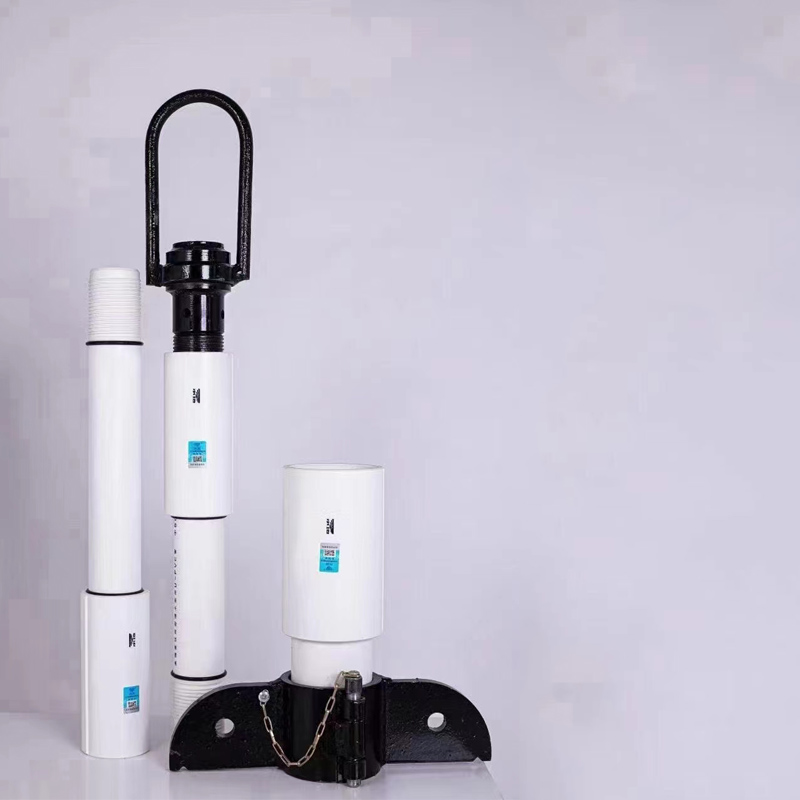

High-Density Polyethylene (HDPE) quick couplings are essential components in fluid transfer systems across diverse industrial sectors, including agriculture, mining, chemical processing, and water management. These couplings facilitate rapid connection and disconnection of hoses and pipes, offering significant advantages over traditional threaded connections in terms of efficiency and operational cost. Their technical positioning within the supply chain places them between the raw HDPE resin producers, the coupling manufacturers employing molding and assembly processes, and the end-users requiring reliable fluid handling solutions. Core performance characteristics of HDPE quick couplings are defined by their pressure rating, leak-proof sealing capability, chemical resistance, and mechanical durability. The industry faces persistent challenges relating to maintaining dimensional accuracy during molding, ensuring consistent sealing performance across varying fluid types, and addressing long-term UV degradation of the HDPE material. This guide provides an in-depth technical analysis of HDPE quick couplings, covering material science, manufacturing, performance engineering, failure modes, and relevant industry standards.

Material Science & Manufacturing

HDPE, a thermoplastic polymer produced from the polymerization of ethylene, is the primary material utilized in the manufacture of quick couplings. Its selection is driven by its excellent chemical resistance, high strength-to-density ratio, and relatively low cost. Specific grades of HDPE, such as HDPE-PE100, are preferred for pressure applications due to their enhanced molecular weight distribution and improved creep resistance. The manufacturing process typically begins with HDPE resin pellets undergoing injection molding. Critical parameters during injection molding include melt temperature (typically 180-220°C), mold temperature (30-50°C), injection pressure (70-120 MPa), and cooling rate. Maintaining consistent mold temperature is crucial to prevent warping and ensure dimensional accuracy of the coupling body and locking mechanisms. Post-molding, couplings often undergo machining operations to refine sealing surfaces and incorporate threads. Sealing elements, often composed of nitrile rubber (NBR) or ethylene propylene diene monomer (EPDM) rubber, are then assembled via compression fitting or vulcanization. Chemical compatibility between the HDPE body and the sealing material is paramount to prevent swelling, degradation, and subsequent leakage. Quality control measures at each stage involve dimensional inspections utilizing Coordinate Measuring Machines (CMMs), pressure testing to verify leak tightness, and material analysis via Fourier-Transform Infrared Spectroscopy (FTIR) to confirm polymer composition. HDPE’s susceptibility to oxidation during high-temperature processing necessitates the inclusion of stabilizers such as hindered amine light stabilizers (HALS) and antioxidants.

Performance & Engineering

The performance of HDPE quick couplings is dictated by their ability to withstand internal pressure, resist external loads, and maintain a leak-proof seal under dynamic conditions. Force analysis during operation considers hoop stress within the coupling body induced by internal pressure, shear stress at the sealing interface, and tensile stress on the locking mechanism during engagement and disengagement. Finite Element Analysis (FEA) is routinely employed to optimize coupling geometry and minimize stress concentrations. Environmental resistance is a critical concern, particularly UV exposure which can lead to HDPE degradation and embrittlement. UV stabilizers are essential, but their effectiveness diminishes over time. Temperature variations also affect performance; HDPE becomes more brittle at lower temperatures and exhibits increased creep at elevated temperatures. Compliance requirements often necessitate adherence to standards such as NSF/ANSI 61 for potable water applications, ensuring that the coupling materials do not leach harmful substances into the fluid. The design of the locking mechanism is also crucial for ensuring positive engagement and preventing accidental disconnection. Cam-lever, ball-locking, and twist-lock mechanisms are commonly employed, each offering varying levels of security and ease of operation. Fatigue analysis is conducted to assess the longevity of the locking mechanism under repeated cycles of engagement and disengagement. The coupling’s compatibility with the hose material (e.g., reinforced PVC, rubber) must also be considered to ensure a secure and leak-free connection.

Technical Specifications

Parameter	Unit	Typical Value	Test Standard
Maximum Operating Pressure	PSI	150-300	ASTM D1599
Operating Temperature Range	°F	-40 to 140	ASTM D790
Tensile Strength	MPa	20-30	ASTM D638
Elongation at Break	%	300-600	ASTM D638
Hardness (Shore D)	-	50-60	ASTM D2240
Chemical Resistance	-	Excellent to most acids, bases, and solvents	ASTM D543

Failure Mode & Maintenance

HDPE quick couplings are susceptible to several failure modes. Fatigue cracking in the locking mechanism is a common issue, particularly under frequent cycling and high loads. This typically initiates at stress concentration points, such as sharp corners or thread roots. Creep rupture, a time-dependent deformation under sustained load, can occur in the coupling body, particularly at elevated temperatures. Environmental Stress Cracking (ESC) can also lead to premature failure, especially in the presence of detergents or certain chemicals. Leakage is often attributed to degradation of the sealing element (NBR or EPDM) due to chemical attack, temperature extremes, or UV exposure. Oxidation of the HDPE material, resulting in embrittlement and loss of impact resistance, is exacerbated by prolonged UV exposure. Delamination can occur if insufficient bonding exists between the HDPE body and the sealing element. Maintenance procedures include regular visual inspection for cracks, corrosion, or deformation. Sealing elements should be replaced periodically, typically annually or as recommended by the manufacturer, depending on the application and operating conditions. Lubrication of the locking mechanism with a silicone-based lubricant can reduce friction and extend its lifespan. Couplings should be stored in a cool, dry place away from direct sunlight to minimize UV degradation. Hydrostatic testing should be performed periodically to verify the integrity of the coupling and identify any potential leaks.

Industry FAQ

Q: What is the effect of prolonged exposure to chlorine on HDPE quick couplings used in water treatment facilities?

A: Prolonged exposure to chlorine can cause oxidative degradation of the HDPE material, leading to embrittlement and cracking. While HDPE exhibits good chemical resistance to chlorine at low concentrations, higher concentrations and extended contact times can significantly reduce its lifespan. Utilizing HDPE-PE100 grades with enhanced UV and oxidation resistance, and implementing regular inspection schedules are critical mitigative measures. Consideration should be given to alternative materials like PVDF for heavily chlorinated applications.

Q: How does the choice of sealing material (NBR vs. EPDM) impact the performance of HDPE quick couplings with different fluids?

A: NBR (Nitrile Rubber) offers superior resistance to oils and fuels, making it suitable for applications involving petroleum-based fluids. However, it exhibits poor resistance to ozone and UV exposure. EPDM (Ethylene Propylene Diene Monomer) provides excellent resistance to ozone, UV, and weathering, making it ideal for outdoor applications and contact with water. Its chemical resistance to oils and fuels is limited. The correct selection depends entirely on the specific fluid being conveyed.

Q: What are the limitations of using HDPE quick couplings in high-pressure applications (above 300 PSI)?

A: HDPE’s creep resistance decreases significantly at higher pressures, potentially leading to dimensional instability and leakage. While reinforced HDPE couplings can be engineered for higher pressures, they require thicker walls and robust locking mechanisms. Alternatives like stainless steel or brass quick couplings are generally preferred for sustained high-pressure applications where long-term reliability is paramount.

Q: What quality control tests are essential to ensure the consistent performance of HDPE quick couplings during mass production?

A: Essential quality control tests include dimensional inspections using CMMs, pressure testing (hydrostatic and pneumatic) to verify leak tightness, material analysis using FTIR to confirm polymer composition, tensile strength and elongation testing (ASTM D638), hardness testing (ASTM D2240), and accelerated aging tests to assess UV resistance and long-term durability. Statistical Process Control (SPC) should be implemented to monitor key manufacturing parameters and identify any deviations from acceptable limits.

Q: What are the typical failure modes associated with the locking mechanisms of HDPE quick couplings and how can they be prevented?

A: Common failure modes include fatigue cracking, wear, and deformation of the locking components. Preventive measures include utilizing high-quality polymers with good impact resistance, optimizing the locking mechanism geometry to minimize stress concentrations, applying appropriate lubrication, and conducting regular inspections for wear or damage. Finite Element Analysis (FEA) can be used during the design phase to optimize the locking mechanism for maximum durability.

Conclusion

HDPE quick couplings represent a cost-effective and versatile solution for fluid transfer applications, offering advantages in terms of chemical resistance, ease of use, and weight. However, their performance is critically dependent on material selection, manufacturing process control, and operating conditions. Understanding the potential failure modes, such as creep rupture, environmental stress cracking, and UV degradation, is crucial for ensuring long-term reliability.

Moving forward, advancements in HDPE formulations, incorporating enhanced UV stabilizers and antioxidants, will further extend the service life of these couplings. Continued refinement of injection molding techniques and the implementation of rigorous quality control procedures will also contribute to improved consistency and performance. The selection of the appropriate sealing material, based on fluid compatibility, remains a key factor in preventing leakage and ensuring operational efficiency.
